Parameters:
Item | Unit | Parameter |
Model |
| YF-X6-Z |
Cleaning Width | mm | 680 |
Squeegee | mm | 830 |
Brush Diameter | mm | 340*2 |
Capacity | m2/h | 3400 |
Water Tank | L | 65 |
Sewage Tank | L | 75 |
Working Time | h | 2.5-3 |
Power | V/AH | 24/100 |
Traction Motor | w | 500 |
Brush Motor | w | 380*2 |
Vacuum Motor | w | 500 |
Water Pump | w | 120 |
Weight | kg | 270 |
Dimension | mm | 1300*830*1010 |
Packing Size | mm | 1360*660*1220 |
Characteristics:
1. Chassis Double-Layer Anti-Rust Primer: Electrostatic powder coating with secondary surface painting, anti-rust and anti-peeling. The coating process includes degreasing, grinding, applying putty, epoxy zinc-rich primer (with 40% zinc content), and plastic spraying (electrostatic powder coating). The final coating is hard and durable.
2. Vehicle Wiring Control: Designed by the Tongji Automotive Research Institute, using national standard wires, waterproof plugs, flame-retardant wire tubes, and well-known electrical components. Wires are stripped by a wire stripping machine. The vehicle wiring control is designed and manufactured according to passenger vehicle standards.
3. Standard High-Pressure Water Gun: Easier to clean with a high-pressure water gun.
4. Water Tank Material: Made of imported PE (modified material), produced with rotational molding technology, more environmentally friendly and resistant to fading outdoors.

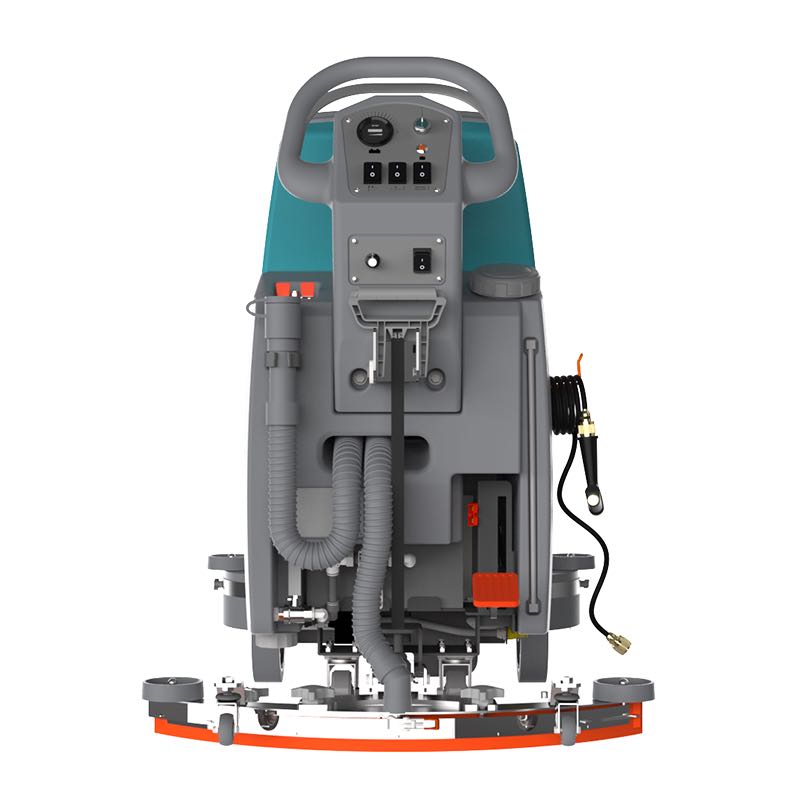

5. Ergonomic Design: Features an ergonomic handle, silicone waterproof skirt, and 304 stainless steel fastening screws throughout the vehicle.
6. Foot Pedal Lifting Brush and Suction Pad: Frees your hands, allowing you to control water flow without bending over.
